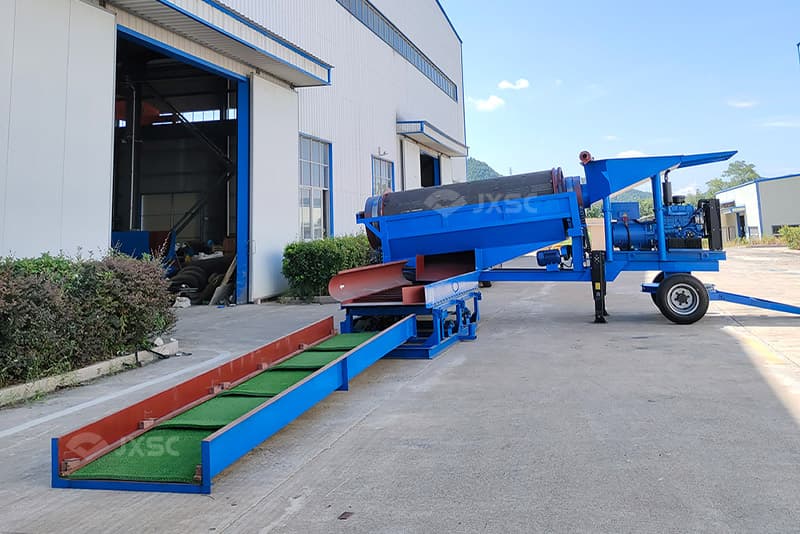

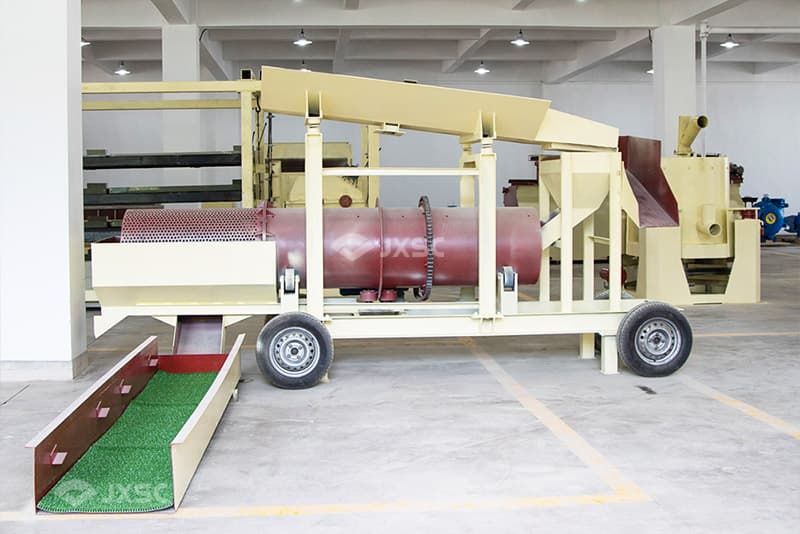

Mobile Gold Washing plant
Mobile gold trommel wash plant is a small-scale portable gold mining equipment. Gold washing equipment is a combined gold ore beneficiation equipment designed for alluvial gold mines. One machine can complete the washing, screening and beneficiation of gold ore. The wheeled chassis can be driven by a vehicle and is easy to move.
Mobile Gold Washing plant advantages:
- Modular installation, easy to operate.
- Gasoline or diesel energy optional.
- Processing capacity 5-300t/h.
- Easy to move, can be easily dragged by a loader or excavator.
Mobile, Portable and Small Scale Gold Washing Equipment
Customize your ideal mobile gold wash plant with a range of washing and sorting equipment options. Popular choices ready for selection!

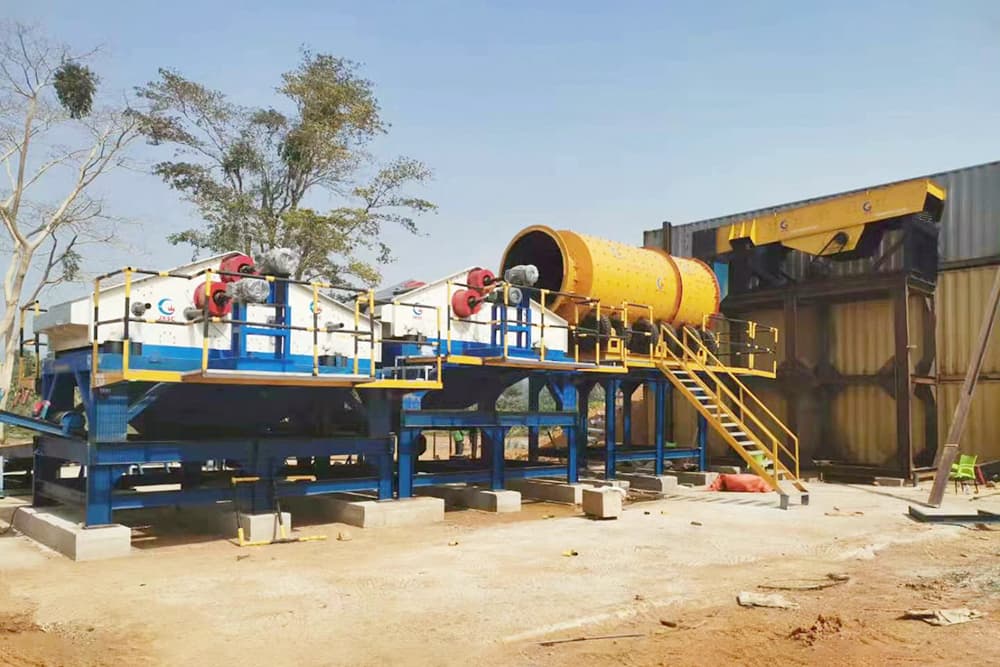

Alluvial Gold Mining Process and Equipment

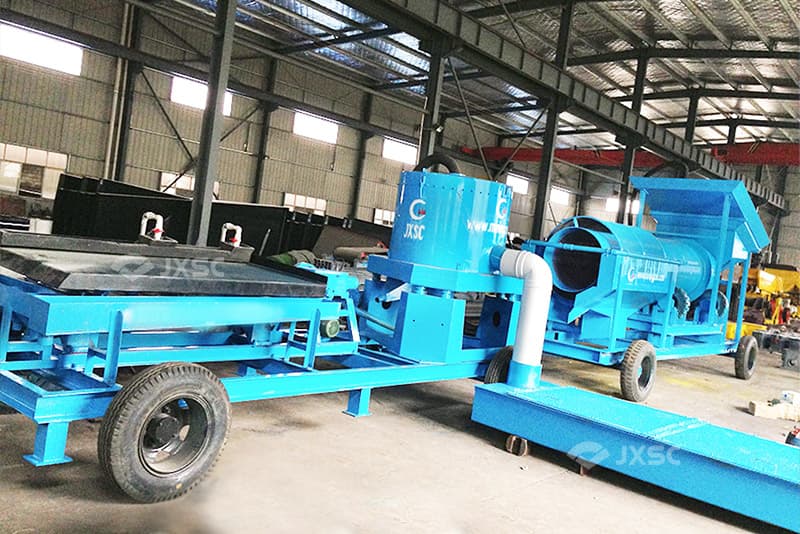

The plant includes a hopper, a trommel scrubber (or a trommel screen), a sluice box, and a water pump. The alluvial gold washing plant can also choose centrifugal concentrator, shaking table, gold furnace and so on according to the mineral conditions.
1. Feeding system
Hopper: with screen and water spray pipe, the screen bar distance can be customized. Used for preliminary screening of materials to remove large particles of ore. The materials are evenly fed into the trommel scrubber or trommel screen.
2. Clay washing system
Trommel (clay) scrubber: suitable for materials containing clay, equipped with a water spray pipe, which can crush and separate clay. The screen further screens the minerals and sends the minerals of suitable particle size to the subsequent mineral processing equipment.
3. Screening system

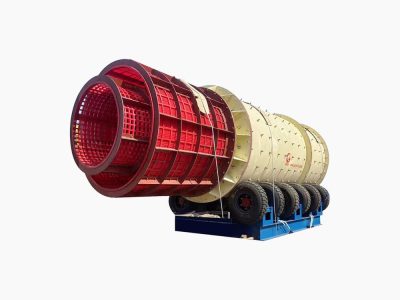

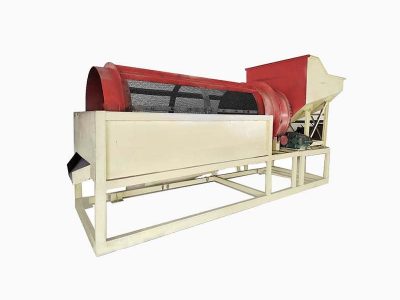

Trommel screen: used for washing, screening and separation of minerals. The size of the screen can be customized, and there are water spray pipes on both sides.
4. Coarse gold recovery system

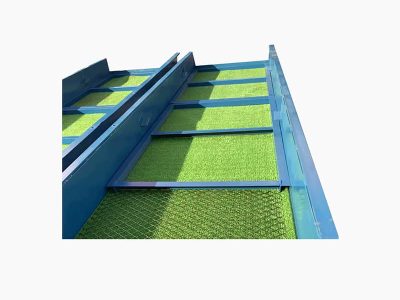

Sluice box or vibrating sluice box: light gangue is washed away by the water flow, and heavy gold ore falls to the mining carpet to achieve coarse gold recovery.
5. Fine gold recovery system

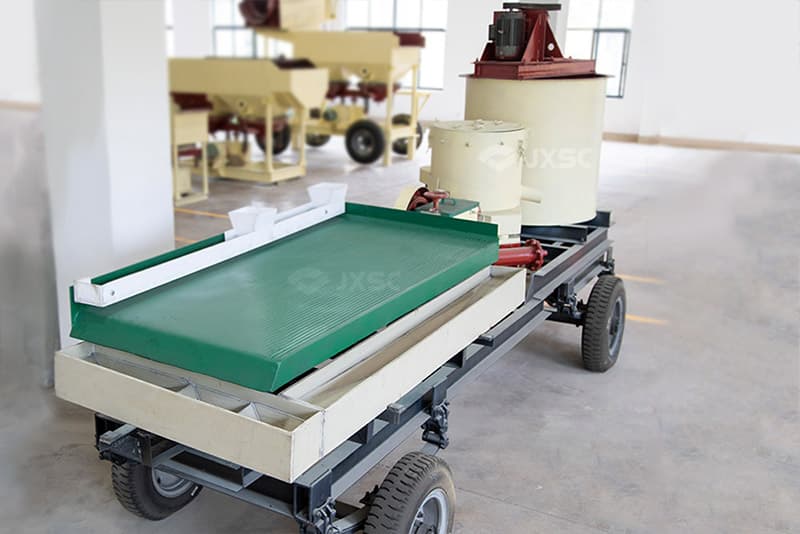

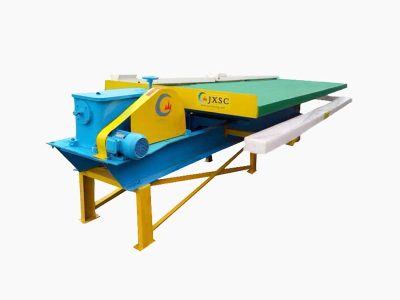

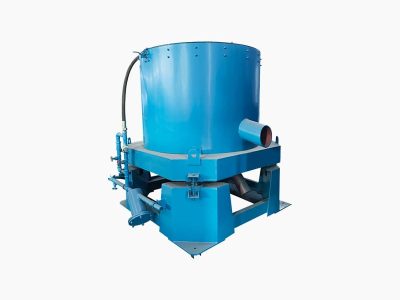

Centrifugal concentrator: recovers fine dust gold less than 6mm. There are continuous working models. Shaking table: Recovers fine gold particles. It can be used alone with the washing and screening system, or it can be used to recover concentrate after the coarse gold recovery system.
6. Water supply system
Slurry pump: Supply water to the gold washing plant.

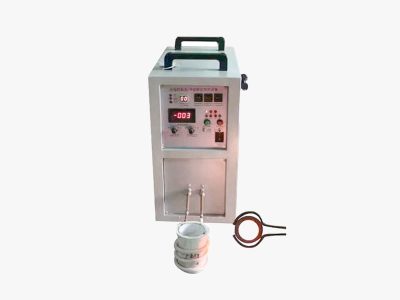

7. Gold smelting furance
Smelt gold sand to make gold nuggets.
Gold Mining Equipment
1-400 t/h
1-200 t/h
Customized length
0.05-2 t/h
0.5-60 t/h
Customized
JXSC has designed efficient mobile gold wash plant for many customers around the world. Please send us your mineral mining information. A technician will contact you immediately.
Why choose JXSC
Free design of gold ore beneficiation process. Provide ore sample testing services. Turnkey solution.
Products are produced in strict accordance with international standards. One year warranty, accessories provided.
Engineers provide on-site guidance on installation and commissioning of equipment.
